Description

[pdf] [ pdf]

VLM-635-59 LPO-D60-F10 635 nm Red Crosshair Class 60° 10 cm

Technical Specifications:

* Optical power is total power output measured at the aperture of the laser.
** According to FDA 1040.10 & IEC 60825-1 regulations, laser power output is measured by 7mm aperture stop from a 10 cm distance of the laser.
*** Operation temperature means within this temperature range, the laser spot line will not be affected to change the spot size line width. It can still work over this range, but the laser spot size or laser line width will be larger.

Description:

Red Crosshair Laser Module Fan Angle 60° Uniform Line with TTL function. Ideal for machine vision, patient alignment, CNC milling, chassis alignment, quality control, textile industry, printing industry…etc.

Features:

• Built with high precision glass line lens and glass laser collimating lens.
• Fan Angle : 60°
• Focus range: 10cm, 20cm, 40cm, 90cm, customized focus length are available by request.
• CW to 10K HZ stable power output for demanding power and speed are of important
• Customized focus within 1 meter available please direct contact us.
• Two laser power output level: LPO – Class 1M laser product; LPT – Class 2M laser product
• Dimensions : Ø 10 x 40 mm (Ø 0.39 x 1.575 )
• Wavelength : 630~645 nm
• 3~6 VDC operation.
• Connection type : Lead wire

Applications:

• Machine vision.
• Patient alignment.
• CNC milling.
• Chassis alignment.
• Quality control.
• Textile industry.
• Printing industry.

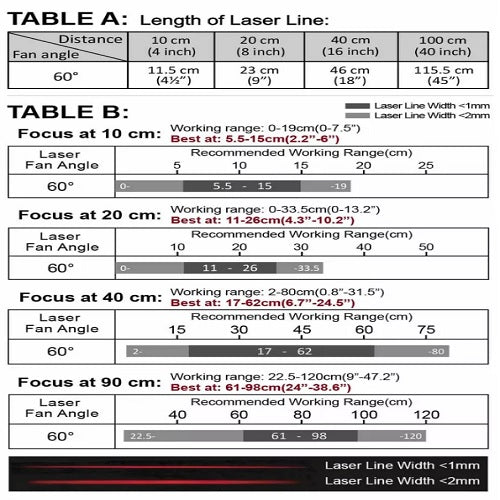

TABLE A: Length of Laser Line

* For TABLE B refer image.
Note: Optional accessories are available.
